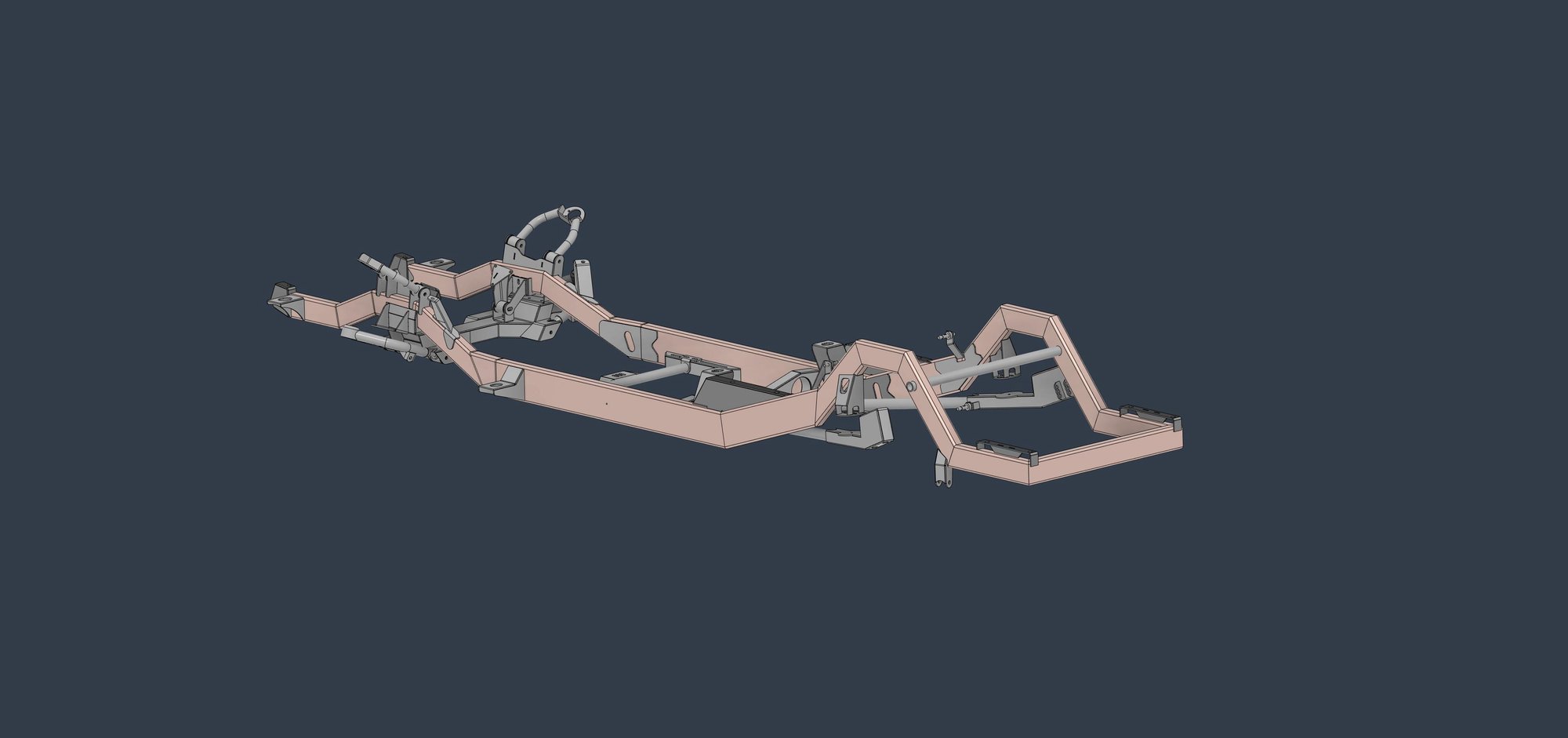

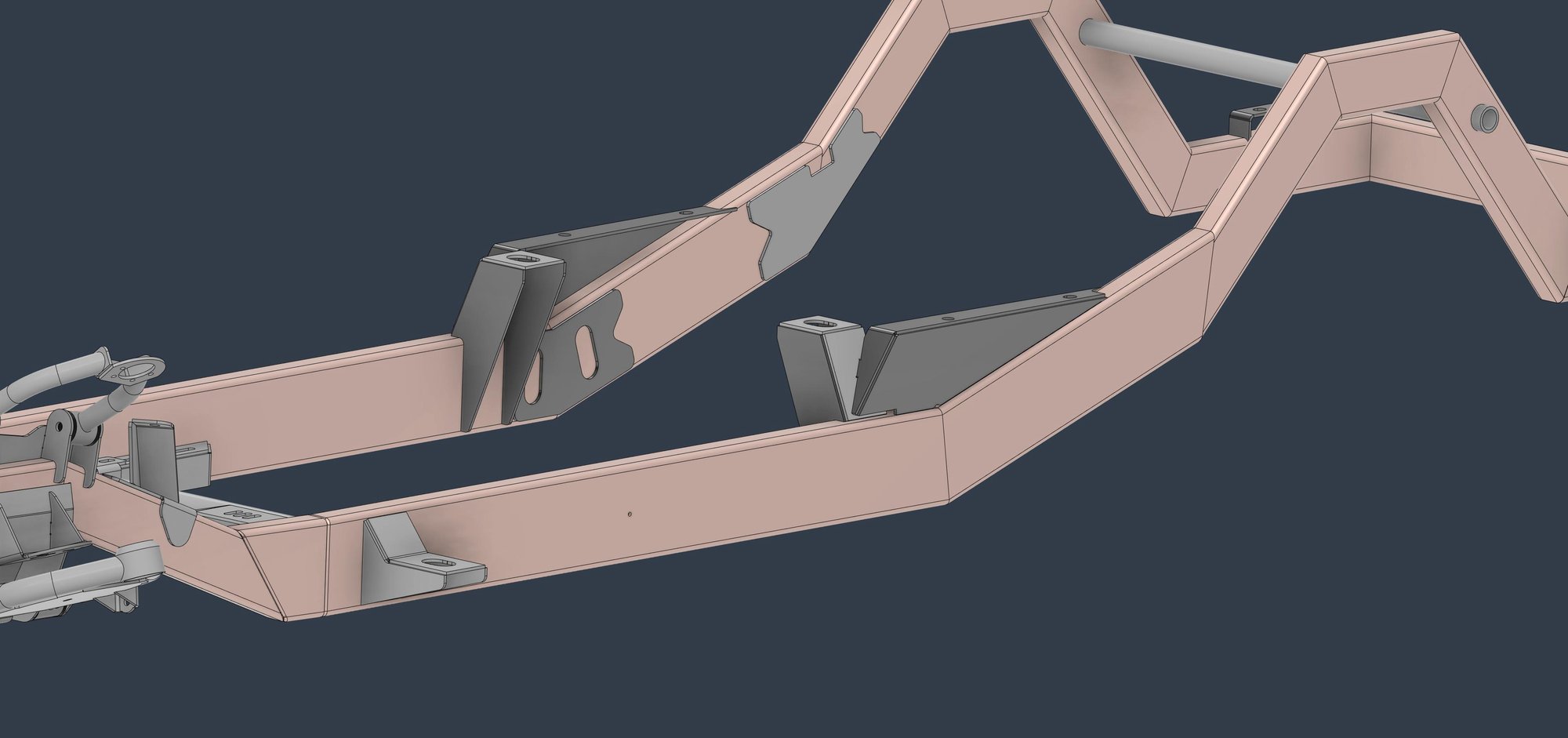

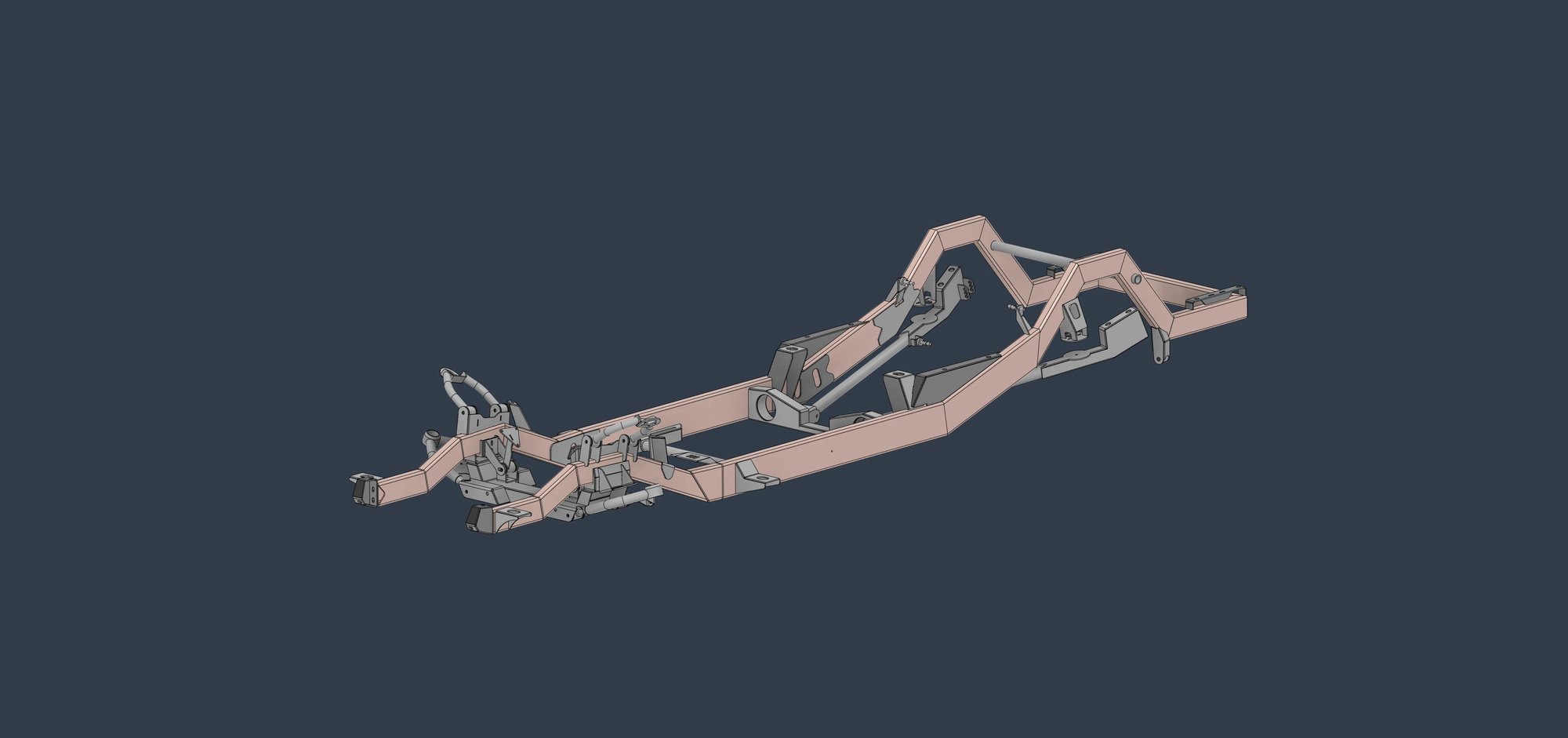

73-87 C10 Complete Chassis 3D Model

OFF_WHITE Suspension is the First to Offer a Complete DIY C10 Chassis for Fabricator's of all Skill Levels.

***Each file package includes 3D CAD Models and Plasma friendly .dxf cut files***

Orders will be dispatched via Email within 1-2 Business days.

Box Tube Style With Trailing Arm Suspension Features:

- 2x6" & 2x4" .188 Wall Box Tube Main Frame Rails
- 10.8" of Total Rear Suspension Travel with Shocks
- Lays Frame on 29" OD Tire Front & Rear
- Integrated Front and Rear Bed Mounting Points
- Adjustable Transmission Crossmember
- Rear Bridge Cross Brace Doubles as Sway Bar Outer Tube

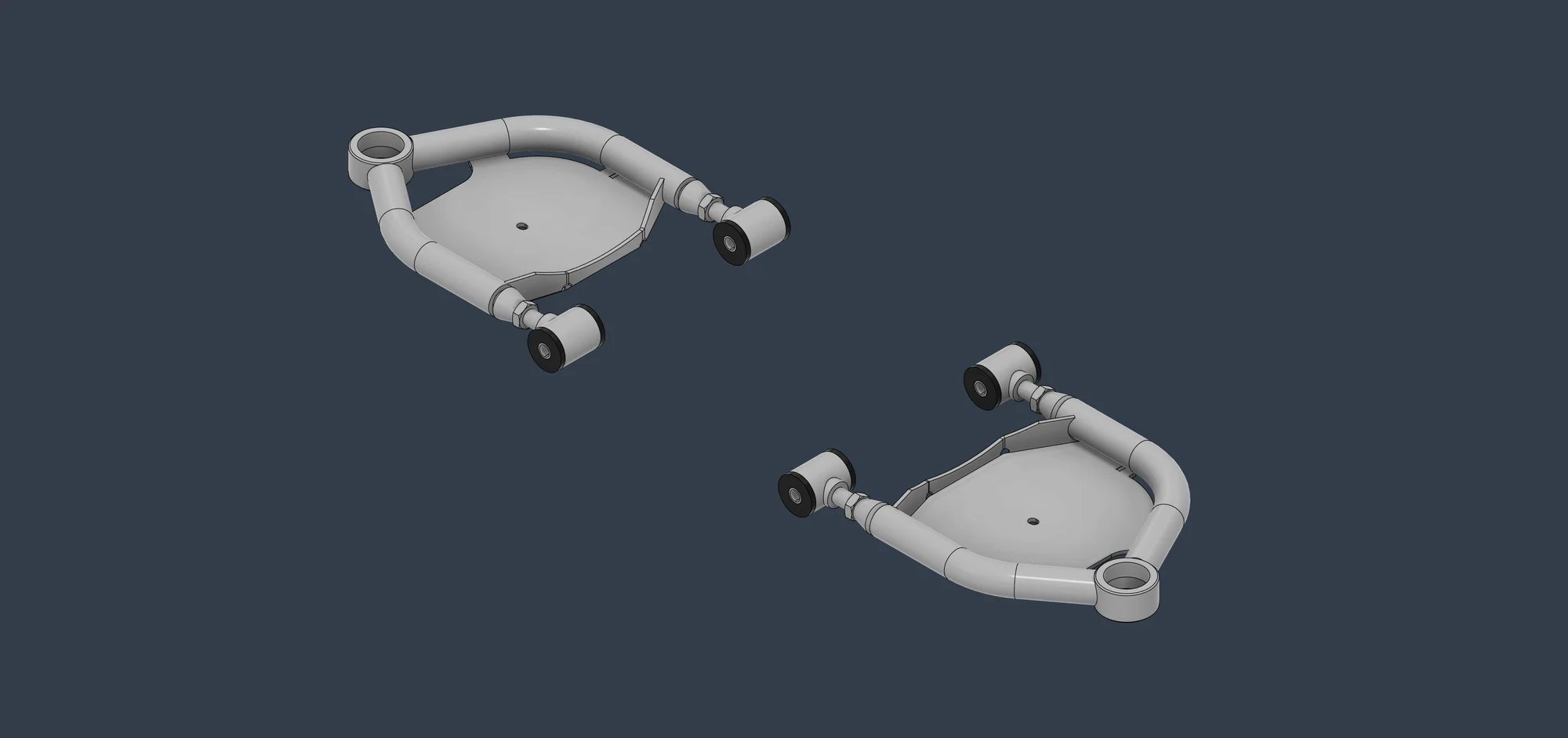

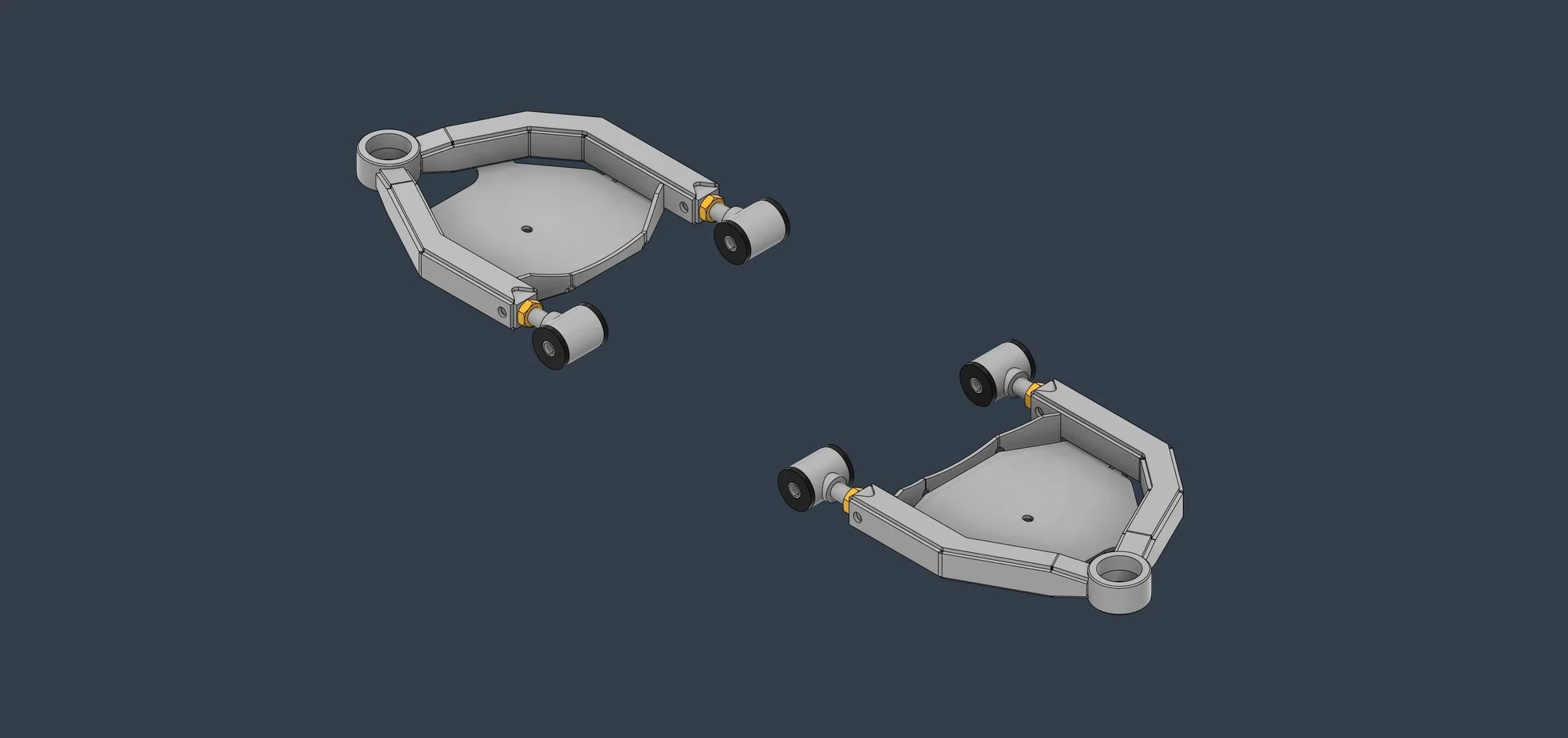

- Tube and Plate Style Controls Arms Included
- Mustang II Rack and Pinion Steering
- Tie Rod Adapters with Misalignment Spacers
- 3” Drop Trailing Arms (Air Bag)
- Rear Trailing Arm Crossmember With Exhaust Pass Throughs
- Adjustable Trac-Bar with Heim Joints
- Adjustable Front Frame Horns/Bumper Mounts

***This item is a Digital Asset, you are purchasing the cut files .DXF (3D Model if Applicable) to be Cut via Laser, Plasma, or Water-Jet.***
