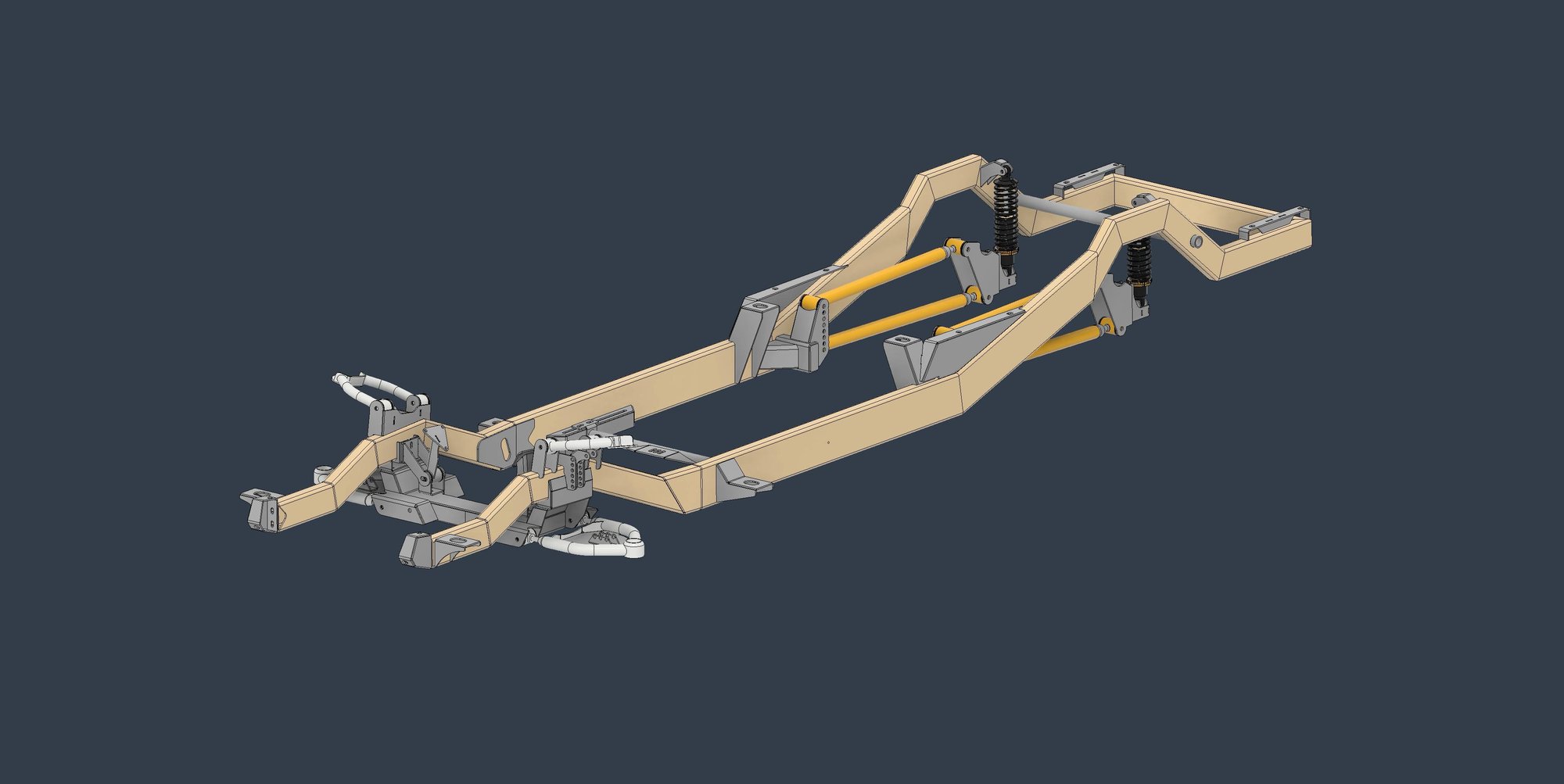

73-87 Coilover Full Chassis 3D Model

OFF_WHITE Suspension is the First to Offer a Complete DIY C10 Chassis for Fabricator's of all Skill Levels.

***Each file package includes 3D CAD Models and Plasma friendly .dxf cut files***

Orders will be dispatched via Email within 1-2 Business

- 2x6" & 2x4" .188 Wall Box Tube Main Frame Rails
- Lowered Rear Notch Height
- Adjustable Front and Rear Coilover Mounting Points
- Integrated Front and Rear Bed Mounting Points
- Adjustable Transmission Crossmember

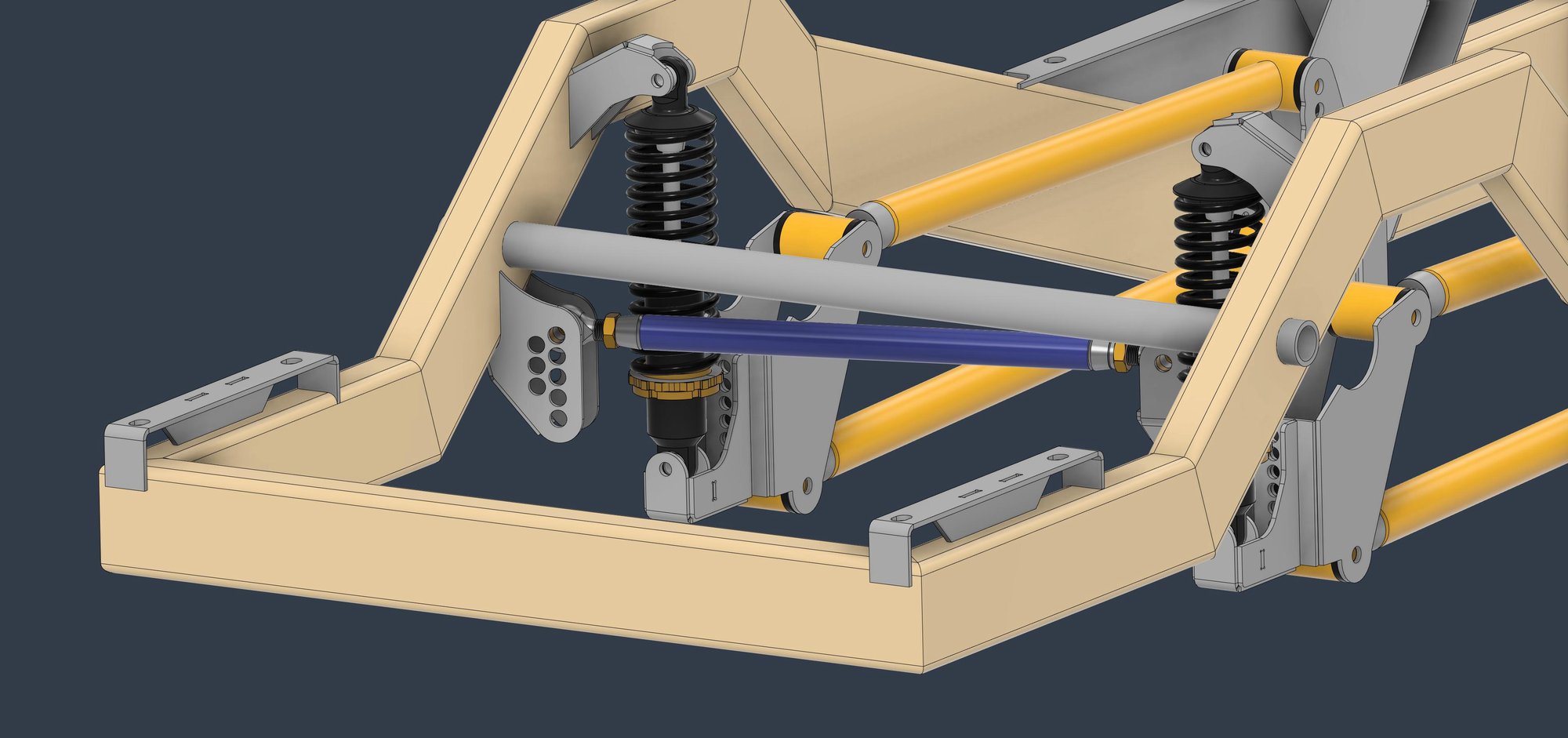

- Rear Bridge Cross Brace Doubles as Sway Bar Outer Tube
- Tube and Plate Style Controls Arms Included

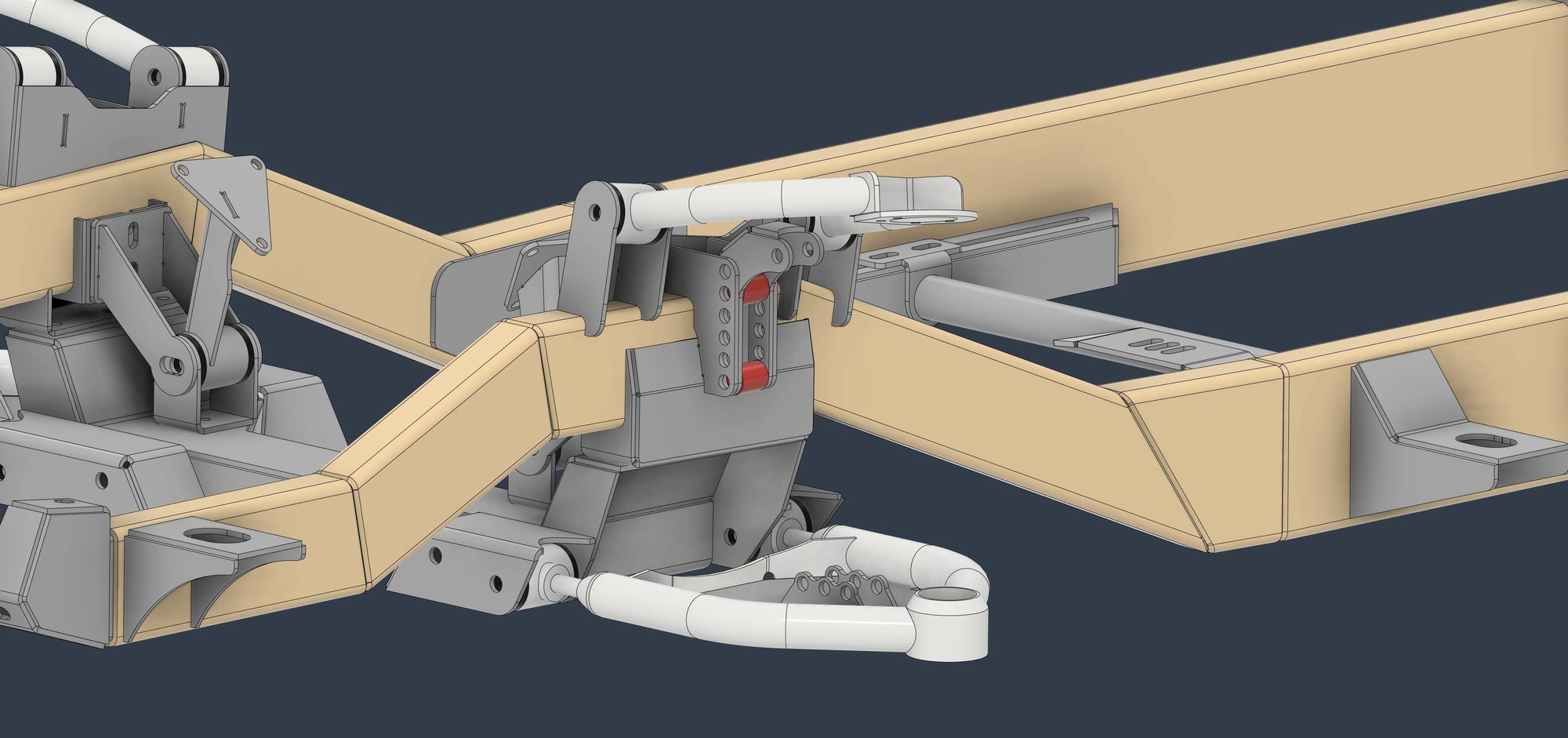

- Mustang II Rack and Pinion Steering
- Tie Rod Adapters with Misalignment Spacers

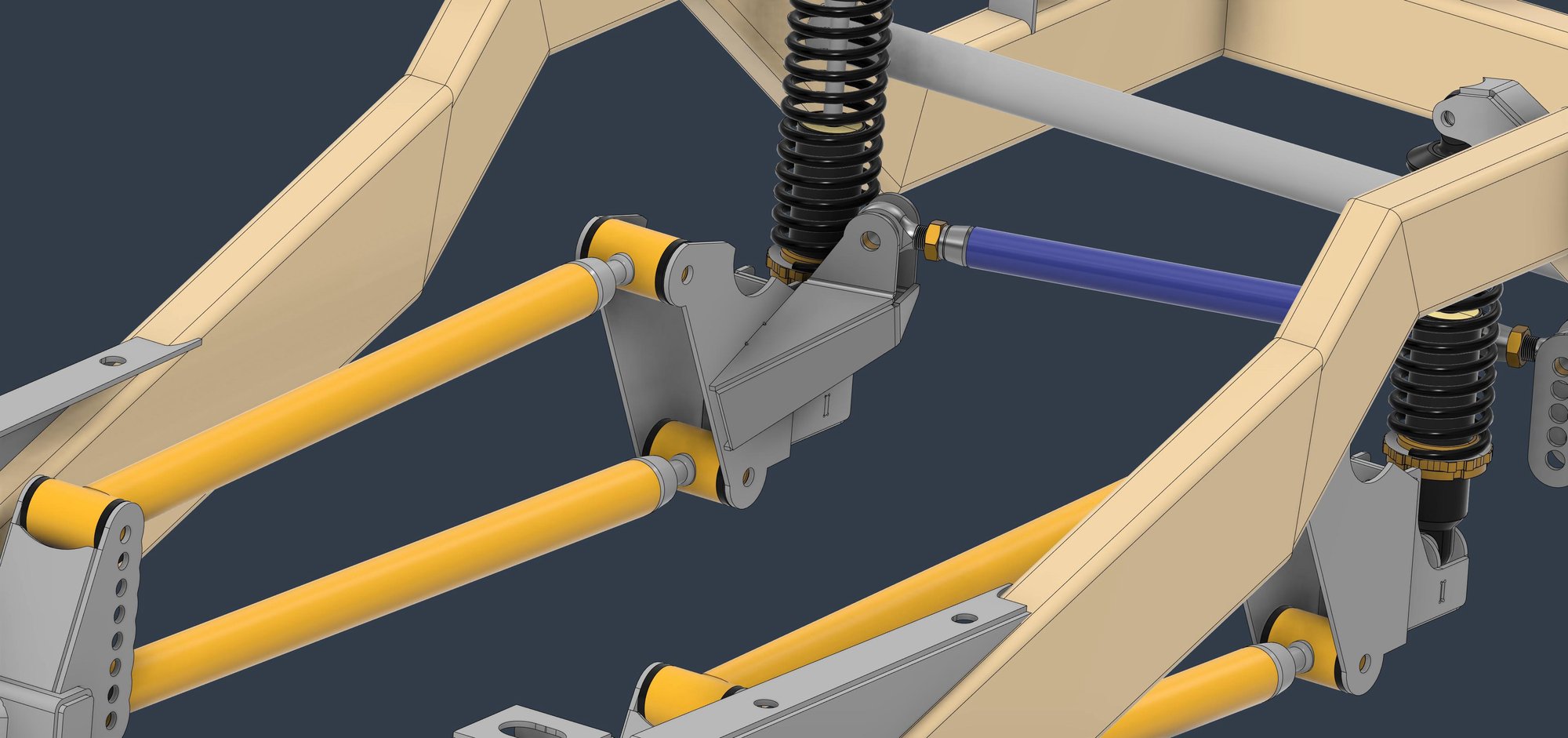

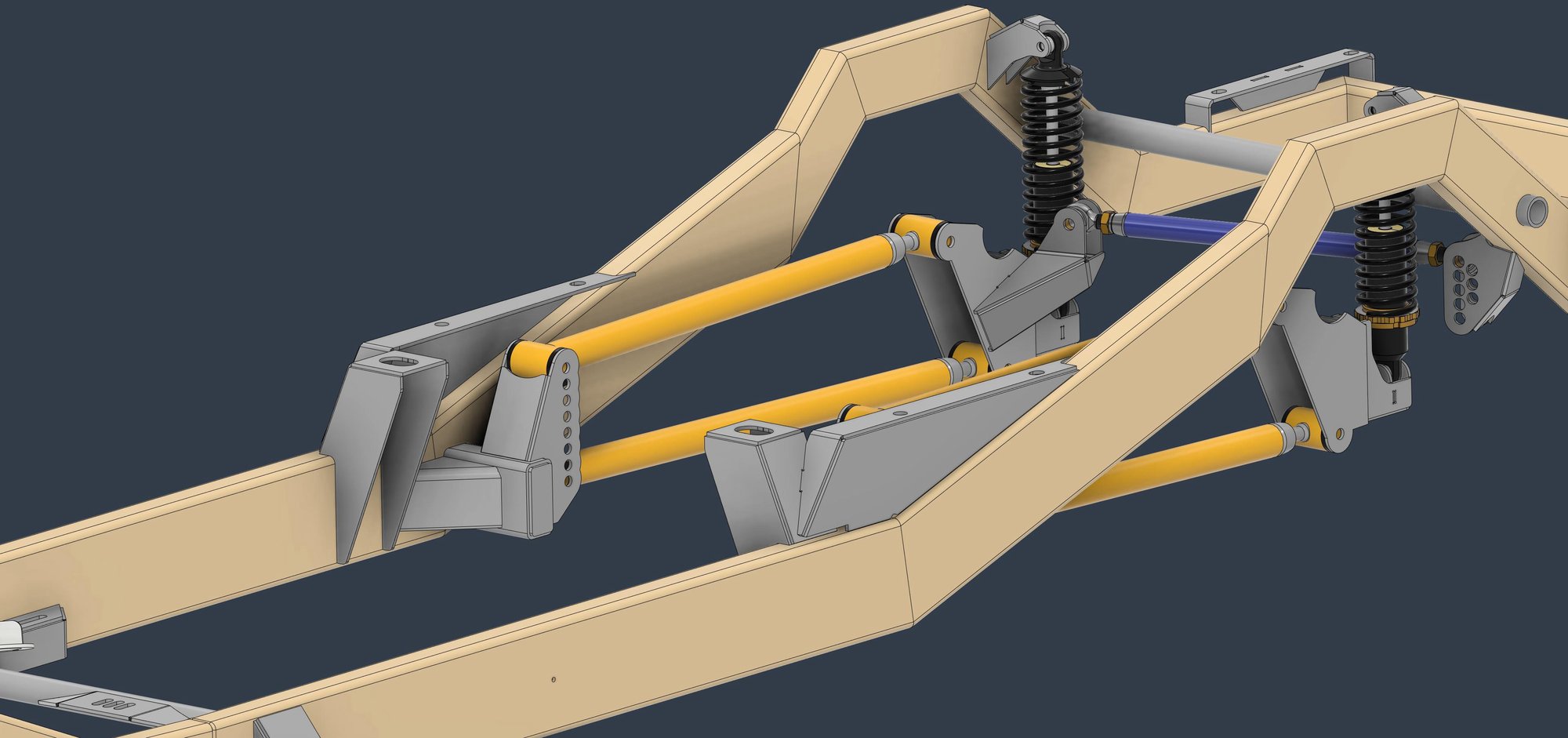

- Parallel 4-Link Rear Suspension with Trac-Bar
- Adjustable Front Frame Horns/Bumper Mounts

-2.5" Drop Spindle = 4-6" Ride Height with 29" OD Tire
-Stock Height Spindle = 6-8" Ride Height with 29" OD Tire

***Ford 9-inch Housing not included in 3D Model***

***This item is a Digital Asset, you are purchasing the cut files .DXF (3D Model if Applicable) to be Cut via Laser, Plasma, or Water-Jet.***
